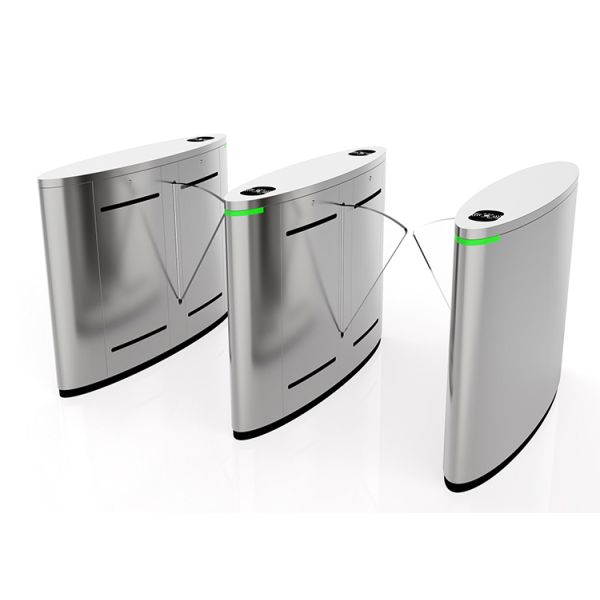

Electronic 304 Stainless Steel Flap Barrier Gate with Barcode Scanner
CE Approved High-Tech Barcode Scanner Electronic 304 Stainless Steel Flap Barrier
Product Overview
This intelligent flap barrier is engineered to control pedestrian access in restricted areas. Constructed from SS304 stainless steel throughout the entire case, it features international standard anti-damp, dust-proof, and water-proof design, making it suitable for both indoor and outdoor applications.
The flap barrier system includes cabinet, reader module, main control module, motor & driver module, infrared photocells, alarm device, limit switch, and voice prompt device. Ideal for apartments, factories, museums, stations, and ferry terminals, when combined with intelligent card reader/writer and management software, it forms a comprehensive intelligent flap barrier management system capable of access control, time attendance, pedestrian volume control, and tolling functions.
Applications
- Banks and insurance companies
- Government and institutional establishments
- Office buildings and administrative sites
- Schools, universities, and colleges
- Sensitive sites: nuclear, pharmaceutical, computer centers
- Airports
Main Features
- Compatible with smart card readers and access controllers for access control functionality
- Expandable to automatic identification systems for access control, pedestrian flow control, attendance, and fare collection
- International standard electrical interface for easy integration with other reader/writer devices
- Infrared photocell system with alarm for unauthorized entry and tailgating attempts
- LED gate direction indicator showing operational status (green arrow for entry, red cross for locked)
- Dual input signal capability for opening turnstile
- Audible sound prompts and information display
- Automatic flap opening during power interruption with N/C mode recovery
- Counting function for continuous pedestrian passage (up to 16 persons)
- Reverse passing alarm for unauthorized direction entry
- Integrated face recognition terminal with advanced detection and recognition algorithms
Technical Specifications
| Product Name |
Flap Barrier Gate |
| Model |
SN-FB04 |
| Material |
Stainless Steel 304 (Cover: 1.5mm, Cabinet: 1.2mm) |
| Size |
1200×300×980mm |
| Passage Width |
600mm |
| Passage Direction |
Unidirectional/Bidirectional |
| Pass Rate |
30 persons/min |
| Infrared Sensor |
3 pairs |
| Power Input |
AC100-240V, 50/60Hz; DC24V |
| Working Voltage |
24V |
| Working Humidity |
≤95% |
| Working Temperature |
-30℃ to +70℃ |
| Working Environment |
Indoor/Outdoor |
| Communication Interface |
RS232, RS485, TCP/IP |
| Access Control System |
ID/IC card, fingerprint, face recognition, barcode/QR code, phone app, ESD system, visitor system |
